2-stroke outboards

Lightweight, compact and high power output

2 Stroke Outboard

YAMAHA E8DMHL

1
of 21
Specifications
Engine Type2 Stroke
Displacement (CC)165CC
Bore X Stroke50.0 x 42.0 mm
Max. Prop Shaft Output kW (PS)5.9 kW (8 ps) @ 5,000 rpm
Fuel Induction System1 carburetor
Engine Transom Height22.9 in
Dry Weight68 kg
Starting SystemManual
Ignition SystemCDI
Starting EnrichmentManual choke
Lubrication SystemPre-mixed Fuel & Oil
Digital NetworkNA
Recommended FuelGasoline - Regular Unleaded
Alternator Output at W.O.T.40W
Get Started

2 Stroke Outboard

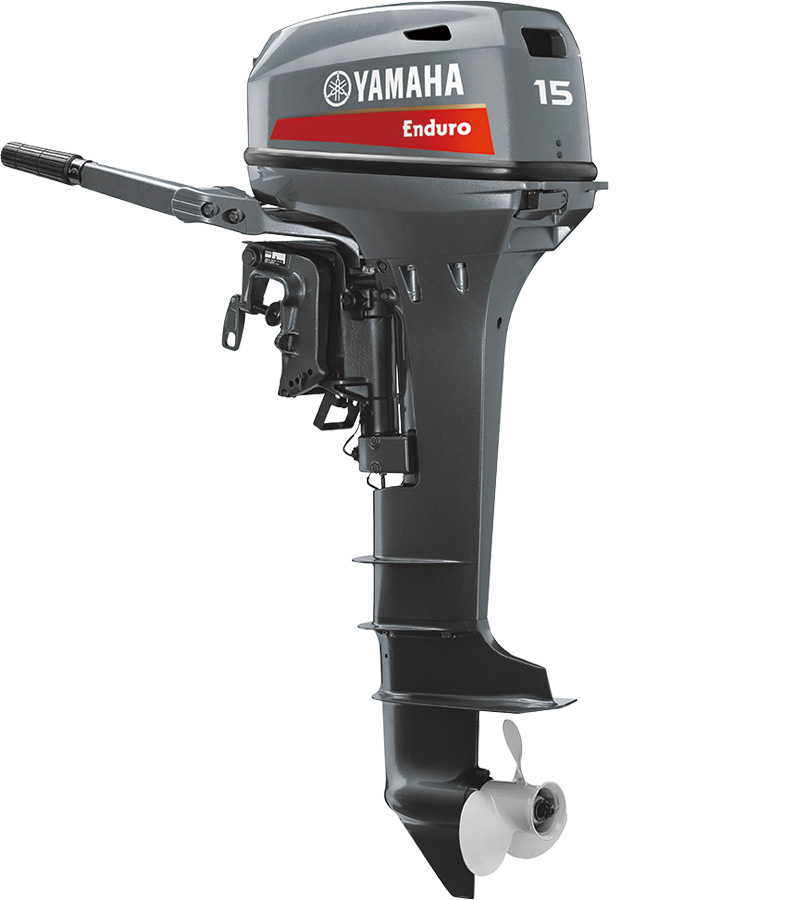

YAMAHA E15DMHS

2
of 21
Specifications
Engine Type2 Stroke
Displacement (CC)246 cc
Bore X Stroke56 x 50 mm
Max. Prop Shaft Output kW (PS)11.0 kW (15 ps) @ 5,000 rpm
Fuel Induction System1 carburetor
Engine Transom Height16.7 in
Dry Weight36kg
Starting SystemManual
Ignition System
Starting EnrichmentManual choke
Lubrication SystemPre-mixed Fuel & Oil
Digital NetworkNA
Recommended FuelGasoline-Unleaded (Octane 87)
Alternator Output at W.O.T.NA
Get Started

2 Stroke Outboard

YAMAHA E15DMHL

3
of 21
Specifications
Engine Type2 Stroke
Displacement (CC)351 cc
Bore X Stroke56.0 x 50.0 mm
Max. Prop Shaft Output kW (PS)11.0 kW (15 ps) @ 5000 rpm
Fuel Induction System1 carburetor
Engine Transom Height22.4 in
Dry Weight40 kg
Starting SystemManual
Ignition SystemCDI
Starting EnrichmentManual choke
Lubrication SystemPre-mixed Fuel & Oil
Digital NetworkNA
Recommended FuelGasoline - Regular Unleaded
Alternator Output at W.O.T.Optional with Rectifier
Get Started

2 Stroke Outboard

YAMAHA E25BMHL

4
of 21
Specifications
Engine Type2 Stroke
Displacement (CC)496 cc
Bore X Stroke72.0 x 61.0 mm
Max. Prop Shaft Output kW (PS)18.4 kW (25 ps) @ 5000 rpm
Fuel Induction System1 carburetor
Engine Transom Height21.7 in
Dry Weight55 kg
Starting SystemManual
Ignition SystemCDI
Starting EnrichmentManual choke
Lubrication SystemPre-mixed Fuel & Oil
Digital NetworkNA
Recommended FuelGasoline - Regular Unleaded
Alternator Output at W.O.T.Optional with Rectifier
Get Started

2 Stroke Outboard

YAMAHA 30HMHL

5
of 21
Specifications
Engine Type2 Stroke
Displacement (CC)496 cc
Bore X Stroke50.0 x 42.0 mm
Max. Prop Shaft Output kW (PS)22.1 kW (30 ps) @ 5500 rpm
Fuel Induction System1 carburetor
Engine Transom Height21.7 in
Dry Weight55 kg
Starting SystemManual
Ignition SystemCDI
Starting EnrichmentManual choke
Lubrication SystemPre-mixed Fuel & Oil
Digital NetworkNA
Recommended FuelGasoline - Regular Unleaded
Alternator Output at W.O.T.GA
Get Started

2 Stroke Outboard

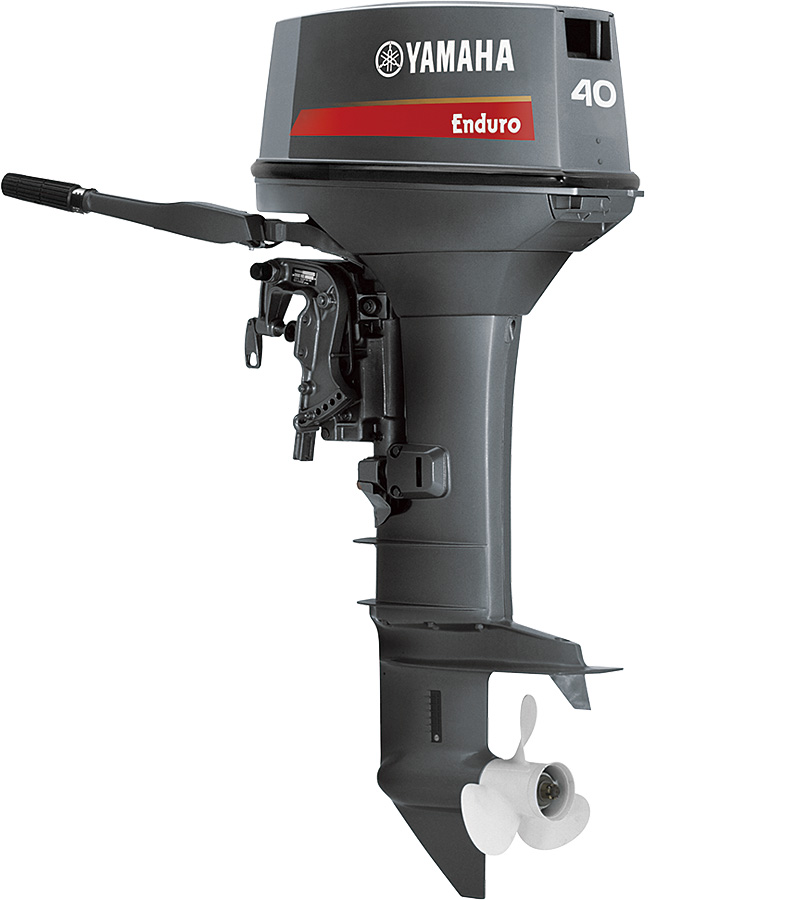

YAMAHA E40JMHL

6
of 21
Specifications
Engine Type2 Stroke
Displacement (CC)703 cc
Bore X Stroke80.0 x 70.0 mm
Max. Prop Shaft Output kW (PS)29.4 kW (40 ps) @ 5000 rpm
Fuel Induction System1 carburetor
Engine Transom Height20 in
Dry Weight72 kg
Starting SystemManual
Ignition System
Starting EnrichmentManual choke
Lubrication SystemPre-mixed Fuel & Oil
Digital NetworkNA
Recommended FuelGasoline - Regular Unleaded
Alternator Output at W.O.T.6A
Get Started

2 Stroke Outboard

YAMAHA E40JWHL

7
of 21
Specifications
Engine Type2 Stroke
Displacement (CC)703 cc
Bore X Stroke80.0 x 70.0 mm
Max. Prop Shaft Output kW (PS)29.4 kW (40 ps) @ 5000 rpm
Fuel Induction System1 carburetor
Engine Transom Height21.6 in
Dry Weight72kg
Starting SystemManual
Ignition System
Starting EnrichmentManual choke
Lubrication SystemPre-mixed Fuel & Oil
Digital NetworkNA
Recommended FuelGasoline - Regular Unleaded
Alternator Output at W.O.T.6A
Get Started

2 Stroke Outboard

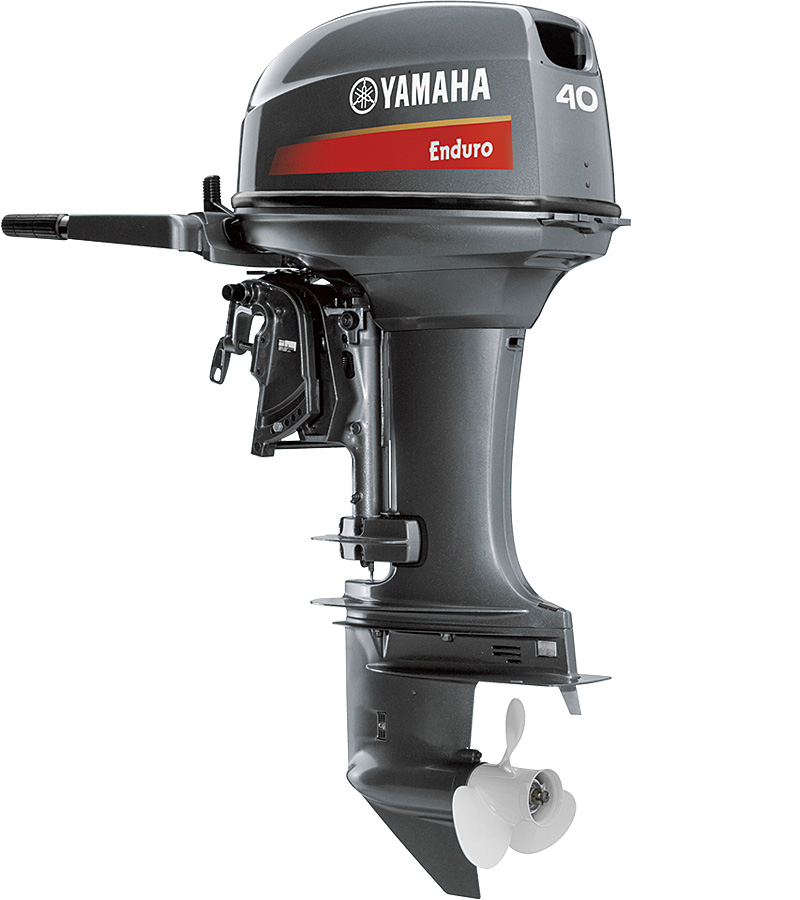

YAMAHA E40XMHL

8
of 21
Specifications
Engine Type2 Stroke
Displacement (CC)703 cc
Bore X Stroke80 x 70 mm
Max. Prop Shaft Output kW (PS)29.4 kW (40 ps) @ 5,000 rpm
Fuel Induction System1 carburetor
Engine Transom Height21.7 in
Dry Weight72kg
Starting SystemManual
Ignition System
Starting EnrichmentManual choke
Lubrication SystemPre-mixed Fuel & Oil
Digital NetworkNA
Recommended FuelGasoline-Unleaded (Octane 87)
Alternator Output at W.O.T.NA
Get Started

2 Stroke Outboard

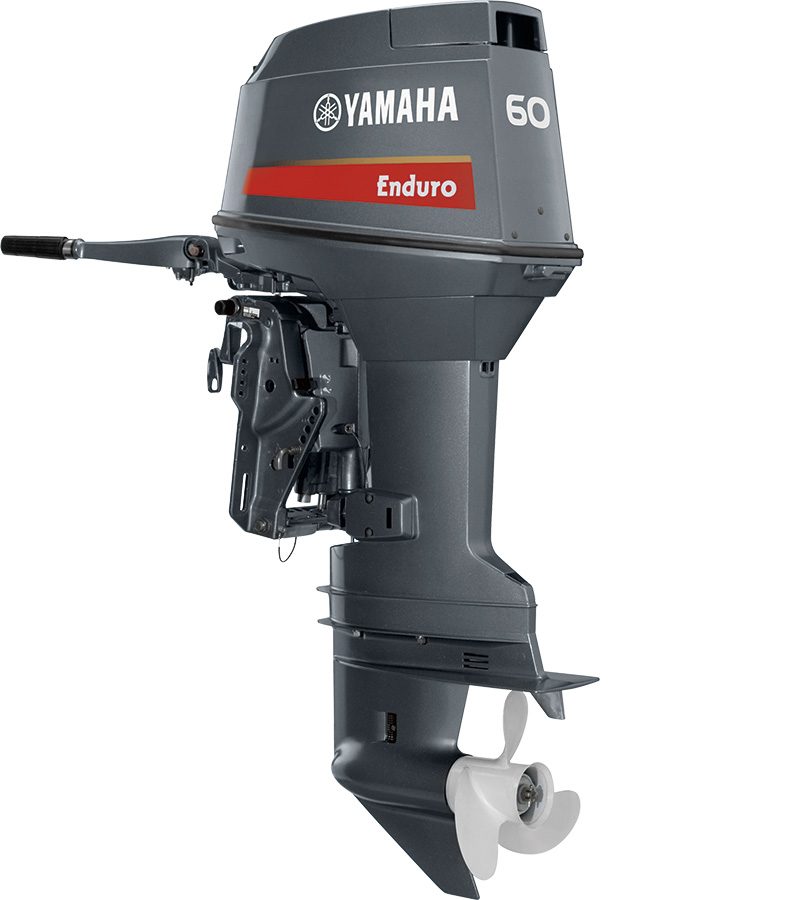

YAMAHA E60HMHDL

9
of 21
Specifications
Engine Type2 Stroke
Displacement (CC)849 cc
Bore X Stroke72.0 x 69.5 mm
Max. Prop Shaft Output kW (PS)44.1 kW (60 ps) @ 5000 rpm
Fuel Induction System1 carburetor
Engine Transom Height17.7 in
Dry Weight96-105 kg
Starting SystemManual & Electric
Ignition System
Starting EnrichmentManual choke
Lubrication SystemPre-mixed Fuel & Oil
Digital NetworkNA
Recommended FuelGasoline - Regular Unleaded
Alternator Output at W.O.T.6A
Get Started

2 Stroke Outboard

YAMAHA E60HWHDL

10
of 21
Specifications
Engine Type2 Stroke
Displacement (CC)849 cc
Bore X Stroke72.0 × 69.5 mm
Max. Prop Shaft Output kW (PS)44.1 kW (60 ps) @ 5500 rpm
Fuel Induction System3 carburetors
Engine Transom Height22.5 in
Dry Weight96 kg
Starting SystemManual
Ignition System
Starting EnrichmentManual choke
Lubrication SystemPre-mixed Fuel & Oil
Digital NetworkNA
Recommended FuelGasoline-Unleaded (Octane 87)
Alternator Output at W.O.T.6A
Get Started

2 Stroke Outboard

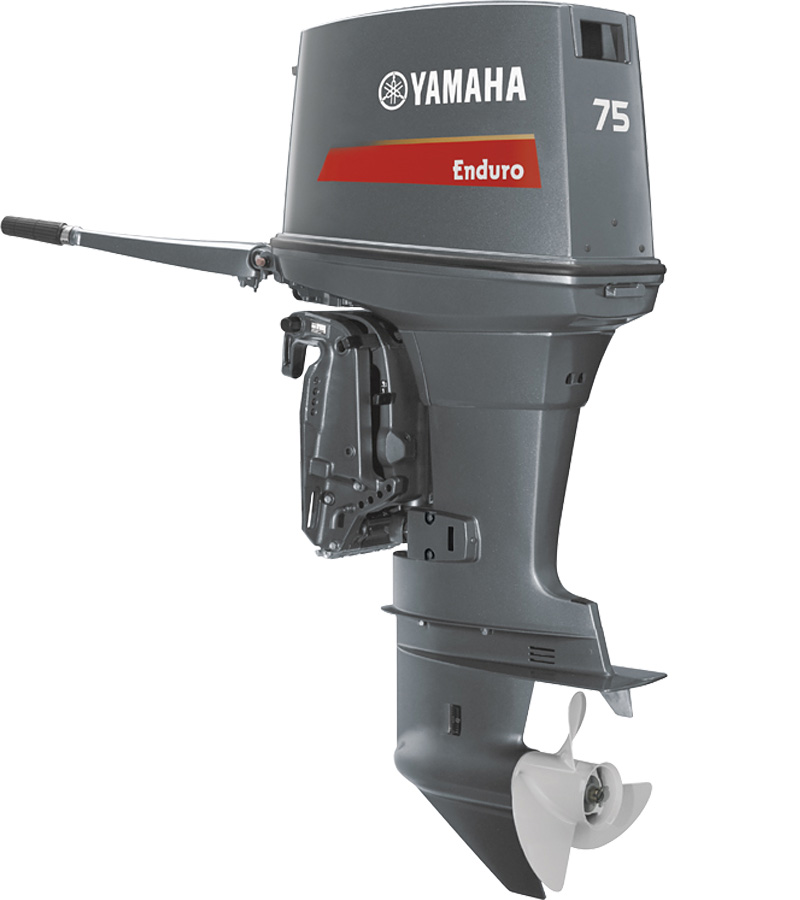

YAMAHA E75BEHDL

11
of 21
Specifications
Engine Type2 Stroke
Displacement (CC)1140 cc
Bore X Stroke82.0 × 72.0 mm
Max. Prop Shaft Output kW (PS)55.2 kW (75 ps) @ 5000 rpm
Fuel Induction System3 carburetors
Engine Transom Height20.5 in
Dry Weight112 kg
Starting SystemManual
Ignition System
Starting EnrichmentManual choke
Lubrication System
Digital NetworkNA
Recommended FuelGasoline-Unleaded (Octane 86)
Alternator Output at W.O.T.6A
Get Started

2 Stroke Outboard

YAMAHA E75BMHDL

12
of 21
Specifications
Engine Type2 Stroke
Displacement (CC)1140 cc
Bore X Stroke82.0 × 72.0 mm
Max. Prop Shaft Output kW (PS)55.2 kW (75 ps) @ 5000 rpm
Fuel Induction System3 carburetors
Engine Transom Height20.5 in
Dry Weight112 kg
Starting SystemManual
Ignition System
Starting EnrichmentManual choke
Lubrication SystemPre-mixed Fuel & Oil
Digital NetworkNA
Recommended FuelGasoline-Unleaded (Octane 86)
Alternator Output at W.O.T.6A
Get Started

2 Stroke Outboard

YAMAHA E75BEHDX

13
of 21
Specifications
Engine Type2 Stroke
Displacement (CC)1140 cc
Bore X Stroke82.0 x 72.0 mm
Max. Prop Shaft Output kW (PS)55.2 kW (75 ps) @ 5,000 rpm
Fuel Induction System1 carburetor
Engine Transom Height20.3 in
Dry Weight121kg
Starting SystemManual
Ignition System
Starting EnrichmentManual choke
Lubrication SystemPre-mixed Fuel & Oil
Digital NetworkNA
Recommended FuelGasoline-Unleaded (Octane 87)
Alternator Output at W.O.T.NA
Get Started

2 Stroke Outboard

YAMAHA 75AEDL

14
of 21
Specifications
Engine Type2 Stroke
Displacement (CC)1140 cc
Bore X Stroke82.0 x 72.0 mm
Max. Prop Shaft Output kW (PS)55.2 kW (75 ps) @ 5,000 rpm
Fuel Induction System1 carburetor
Engine Transom Height20.3 in
Dry Weight121kg
Starting SystemManual
Ignition System
Starting EnrichmentManual choke
Lubrication SystemPre-mixed Fuel & Oil
Digital NetworkNA
Recommended FuelGasoline-Unleaded (Octane 87)
Alternator Output at W.O.T.NA
Get Started

2 Stroke Outboard

YAMAHA 85AEHDL

15
of 21
Specifications
Engine Type2 Stroke
Displacement (CC)1140 cc
Bore X Stroke82.0 × 72.0 mm
Max. Prop Shaft Output kW (PS)62.5 kW (85 ps) @ 5000 rpm
Fuel Induction System3 carburetors
Engine Transom Height20.5 in
Dry Weight112kg
Starting SystemManual
Ignition System
Starting EnrichmentManual choke
Lubrication SystemPre-mixed Fuel & Oil
Digital NetworkNA
Recommended FuelGasoline-Unleaded (Octane 86)
Alternator Output at W.O.T.6A
Get Started

2 Stroke Outboard

YAMAHA 85AEDL

16
of 21
Specifications
Engine Type2 Stroke
Displacement (CC)1140 cc
Bore X Stroke82 x 72mm
Max. Prop Shaft Output kW (PS)62.5 kW (85 ps) @ 5500 rpm
Fuel Induction System1 carburetor
Engine Transom Height20 in
Dry Weight121kg
Starting SystemElectric
Ignition System
Starting Enrichment
Lubrication SystemPre-mixed Fuel & Oil
Digital NetworkNA
Recommended FuelGasoline - Regular Unleaded
Alternator Output at W.O.T.12V - 16A
Get Started

2 Stroke Outboard

YAMAHA 85AETL

17
of 21
Specifications
Engine Type2 Stroke
Displacement (CC)1140 cc
Bore X Stroke56 x 50 mm
Max. Prop Shaft Output kW (PS)62.5 kW (85 ps) @ 5000 rpm
Fuel Induction System3 carburetors
Engine Transom Height20 in
Dry Weight121kg
Starting SystemManual
Ignition System
Starting EnrichmentManual choke
Lubrication SystemPre-mixed Fuel & Oil
Digital NetworkNA
Recommended FuelGasoline-Unleaded (Octane 86)
Alternator Output at W.O.T.12V - 16A with rectifier regulator
Get Started

2 Stroke Outboard

YAMAHA 85AEDX

18
of 21
Specifications
Engine Type2 Stroke
Displacement (CC)1140 cc
Bore X Stroke82 x 72mm
Max. Prop Shaft Output kW (PS)62.5 kW (85 ps) @ 5500 rpm
Fuel Induction System1 carburetor
Engine Transom Height20 in
Dry Weight121kg
Starting SystemElectric
Ignition System
Starting EnrichmentManual choke
Lubrication SystemPre-mixed Fuel & Oil
Digital NetworkNA
Recommended FuelGasoline - Regular Unleaded
Alternator Output at W.O.T.12V - 16A
Get Started

2 Stroke Outboard

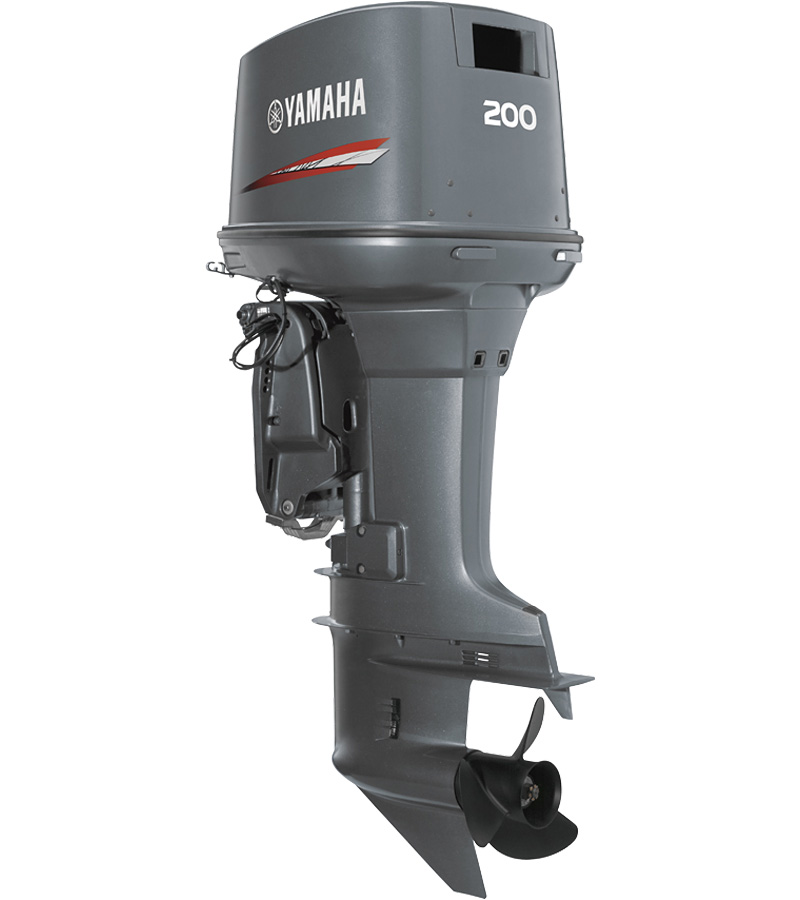

YAMAHA 200AETL

19
of 21
Specifications
Engine Type2 Stroke
Displacement (CC)1140 cc
Bore X Stroke56 x 50 mm
Max. Prop Shaft Output kW (PS)62.5 kW (200 ps) @ 5000 rpm
Fuel Induction System3 carburetors
Engine Transom Height20 in
Dry Weight121kg
Starting SystemManual
Ignition System
Starting EnrichmentManual choke
Lubrication SystemPre-mixed Fuel & Oil
Digital NetworkNA
Recommended FuelGasoline-Unleaded (Octane 86)
Alternator Output at W.O.T.12V - 16A with rectifier regulator
Get Started

2 Stroke Outboard

YAMAHA 200AETX

20
of 21
Specifications
Engine Type2 Stroke
Displacement (CC)1140 cc
Bore X Stroke56 x 50 mm
Max. Prop Shaft Output kW (PS)62.5 kW (200 ps) @ 5000 rpm
Fuel Induction System3 carburetors
Engine Transom Height20 in
Dry Weight121kg
Starting System
Ignition System
Starting EnrichmentManual choke
Lubrication System
Digital NetworkNA
Recommended Fuel
Alternator Output at W.O.T.12V - 16A with rectifier regulator
Get Started

2 Stroke Outboard

YAMAHA L200AETX

21
of 21
Specifications
Engine Type2 Stroke
Displacement (CC)3330 cc
Bore X Stroke90 x 68mm
Max. Prop Shaft Output kW (PS)147.1 kW (200ps) @ 5500rpm
Fuel Induction System1 carburetor
Engine Transom Height25 in
Dry Weight229kg
Starting SystemElectric
Ignition System
Starting EnrichmentManual choke
Lubrication SystemPre-mixed Fuel & Oil
Digital NetworkNA
Recommended FuelGasoline - Regular Unleaded
Alternator Output at W.O.T.12V - 35A
Get Started
