4 Stroke Outboards

4-stroke outboards

High Performance

425 - 125 PS

4-Stroke Outboard | High performance SERIES

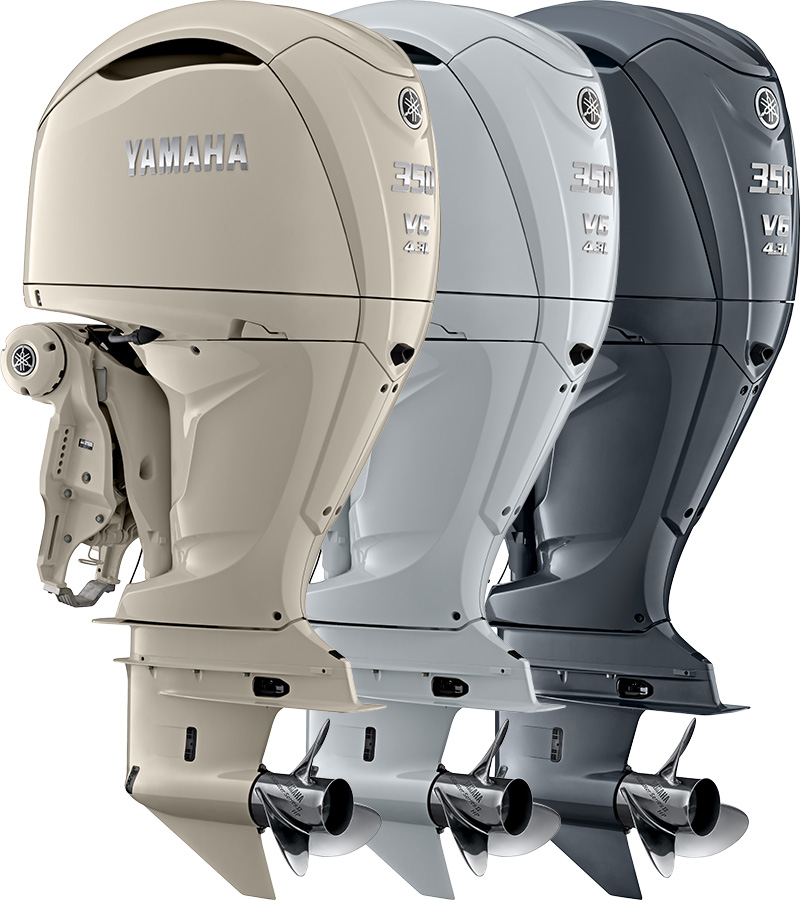

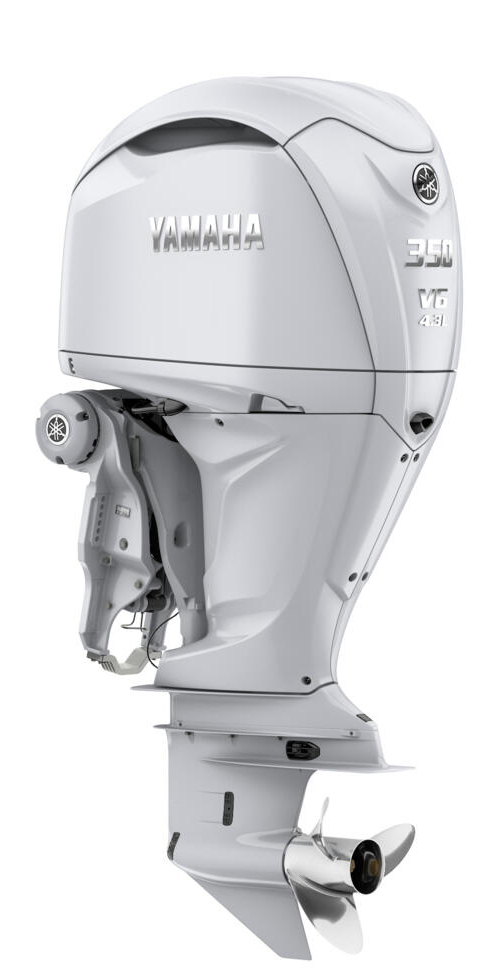

YAMAHA F350

1

of 9

Engine Type	4 Stroke
Displacement (CC)	4.3L
Bore X Stroke	96 x 98mm (3.78 x 3.86 in)
Max. Prop Shaft Output kW (PS)	350 @ 6000 rpm
Fuel Induction System	Direct fuel injection
Engine Transom Height	X: 640 (25.2), U: 767 (30.2), E: 894 (35.2)
Dry Weight	286 kg
Starting System	Electric
Ignition System
Starting Enrichment	Electric starter
Lubrication System	Wet Sump
Digital Network	Available
Recommended Fuel	Gasoline-Unleaded (Octane 89)
Alternator Output at W.O.T.	50 – 70 amp

4-Stroke Outboard | High performance SERIES

YAMAHA F350AETX

2

of 9

Engine Type	4 Stroke
Displacement (CC)	5330 cc
Bore X Stroke	96.0 x 96.0 mm
Max. Prop Shaft Output kW (PS)	257.4 kW (350 ps) @ 5500 rpm
Fuel Induction System	Fuel Injection
Engine Transom Height	25 in
Dry Weight	365 kg
Starting System	Electric
Ignition System	TCI
Starting Enrichment
Lubrication System	Wet Sump
Digital Network	Available
Recommended Fuel	Gasoline-Unleaded (Octane 89)
Alternator Output at W.O.T.	70 A

4-Stroke Outboard | High performance SERIES

YAMAHA F300FST2N

3

of 9

Engine Type	4 Stroke
Displacement (CC)	4169 cc
Bore X Stroke	96.0 x 96.0 mm
Max. Prop Shaft Output kW (PS)	220.6 kW (300 ps) @ 5500 rpm
Fuel Induction System	Fuel Injection
Engine Transom Height	25.3 in
Dry Weight	269-276 kg
Starting System	Electric
Ignition System	TCI
Starting Enrichment
Lubrication System	Wet Sump
Digital Network	Available
Recommended Fuel	Gasoline-Unleaded (Octane 87)
Alternator Output at W.O.T.	50 A

4-Stroke Outboard | High performance SERIES

YAMAHA F250HETU

4

of 9

Engine Type	4 Stroke
Displacement (CC)	3352 cc
Bore X Stroke	94.0 × 80.5 mm
Max. Prop Shaft Output kW (PS)	183.9 kW (250 ps) @ 5000-6000 rpm
Fuel Induction System	EFI
Engine Transom Height	25.3 in
Dry Weight	283 kg
Starting System	Electric
Ignition System	TCI Microcomputer
Starting Enrichment
Lubrication System	Wet Sump
Digital Network	Available
Recommended Fuel	Gasoline - Regular Unleaded
Alternator Output at W.O.T.	50A

4-Stroke Outboard | High performance SERIES

YAMAHA F250HETX

5

of 9

Engine Type	4 Stroke
Displacement (CC)	3352 cc
Bore X Stroke	-
Max. Prop Shaft Output kW (PS)	183.9 kW (250 ps) @ 5500 rpm
Fuel Induction System	EFI
Engine Transom Height	25.3 in
Dry Weight	283 - 289 kg
Starting System	Electric
Ignition System	TCI Electronic Ignition
Starting Enrichment	Prime Start
Lubrication System	Wet Sump
Digital Network	Available
Recommended Fuel	Gasoline-Unleaded (Octane 89)
Alternator Output at W.O.T.	-

4-Stroke Outboard | High performance SERIES

YAMAHA FL250HETU

6

of 9

Engine Type	4 Stroke
Displacement (CC)	3352 cc
Bore X Stroke	94.0 × 80.5 mm
Max. Prop Shaft Output kW (PS)	183.9 kW (250 ps) @ 5000-6000 rpm
Fuel Induction System	EFI
Engine Transom Height	25.3 in
Dry Weight	283 kg
Starting System	Electric
Ignition System	TCI Microcomputer
Starting Enrichment
Lubrication System	Wet Sump
Digital Network	Available
Recommended Fuel	Gasoline - Regular Unleaded
Alternator Output at W.O.T.	50A

4-Stroke Outboard | High performance SERIES

YAMAHA FL250HETX

7

of 9

Engine Type	4 Stroke
Displacement (CC)	3352 cc
Bore X Stroke	94.0 × 80.5 mm
Max. Prop Shaft Output kW (PS)	183.9 kW (250 ps) @ 5000-6000 rpm
Fuel Induction System	EFI
Engine Transom Height	25.3 in
Dry Weight	283 kg
Starting System	Electric
Ignition System	TCI Microcomputer
Starting Enrichment	Prime Start
Lubrication System	Wet Sump
Digital Network	Available
Recommended Fuel	Gasoline - Regular Unleaded
Alternator Output at W.O.T.	50A

4-Stroke Outboard | High performance SERIES

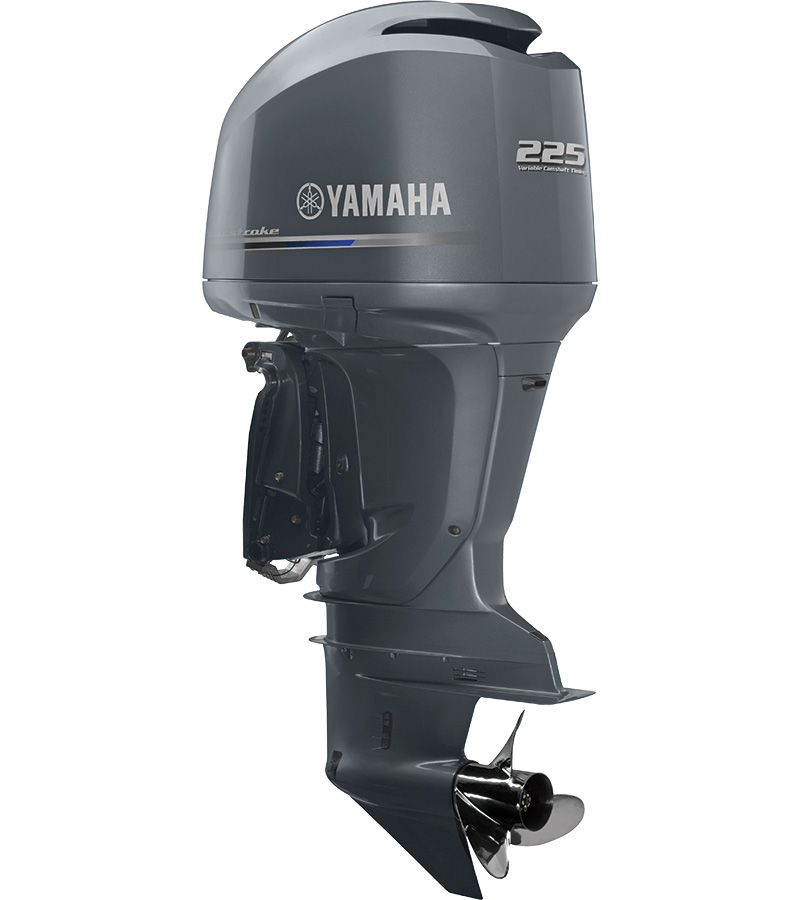

YAMAHA F225BETX

8

of 9

Engine Type	4 Stroke
Displacement (CC)	3352 cc
Bore X Stroke	94.0 × 80.5 mm
Max. Prop Shaft Output kW (PS)	165.5 kW (225 ps) @ 5500 rpm
Fuel Induction System	Fuel Injection
Engine Transom Height	25.3 in
Dry Weight	283 kg
Starting System	Electric
Ignition System	TCI Microcomputer
Starting Enrichment
Lubrication System	Wet Sump
Digital Network	Available
Recommended Fuel	Gasoline - Regular Unleaded
Alternator Output at W.O.T.	50A

4-Stroke Outboard | High performance SERIES

YAMAHA FL225BETX

9

of 9

Engine Type	4 Stroke
Displacement (CC)	3352 cc
Bore X Stroke	94.0 × 80.5 mm
Max. Prop Shaft Output kW (PS)	165.5 kW (225 ps) @ 5500 rpm
Fuel Induction System	Fuel Injection
Engine Transom Height	25.3 in
Dry Weight	283 kg
Starting System	Electric
Ignition System	TCI Microcomputer
Starting Enrichment
Lubrication System	Wet Sump
Digital Network	Available
Recommended Fuel	Gasoline-Unleaded (Octane 89)
Alternator Output at W.O.T.	50A

4-stroke outboards

Mid & Portable Series

130 - 9.9 PS

4-Stroke Outboard | Mid & Portable Series

YAMAHA FL200BETX

1

of 11

Engine Type	4 Stroke
Displacement (CC)	2650 cc
Bore X Stroke	94.0 x 96.2 mm
Max. Prop Shaft Output kW (PS)	110.3 kW (200 ps) @ 5500 rpm
Fuel Induction System	Fuel Injection
Engine Transom Height	25.3 in
Dry Weight	289 kg
Starting System	Electric
Ignition System	TCI Electronic Ignition
Starting Enrichment	Prime Start
Lubrication System	Wet Sump
Digital Network	Available
Recommended Fuel	Gasoline-Unleaded (Octane 87)
Alternator Output at W.O.T.	50A

4-Stroke Outboard | Mid & Portable Series

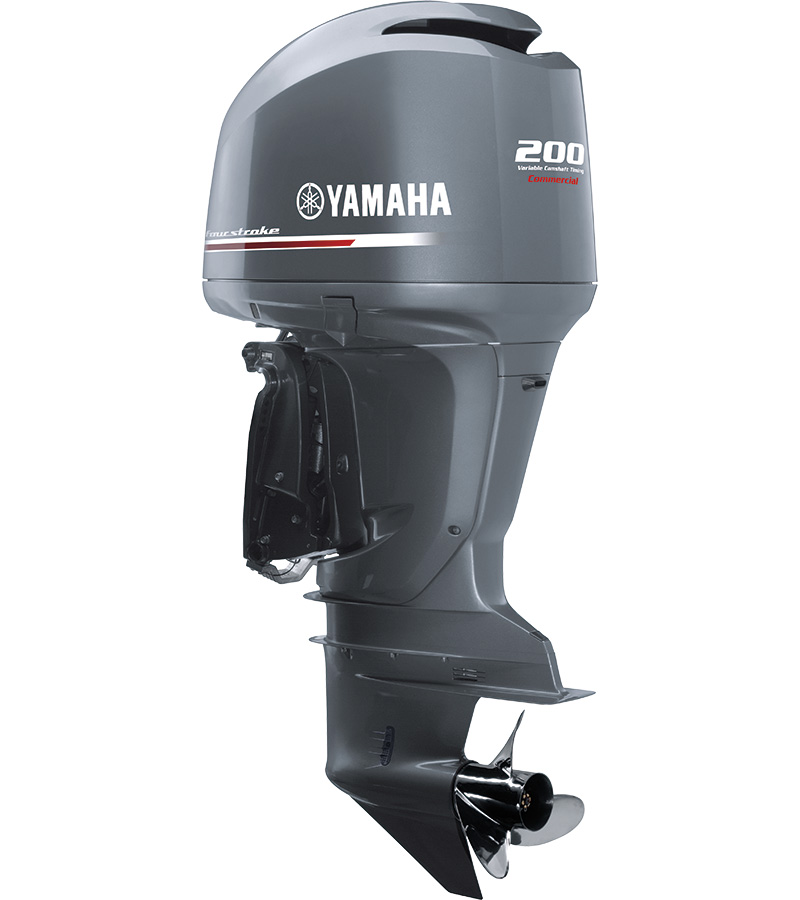

YAMAHA F200BETX

2

of 11

Engine Type	4 Stroke
Displacement (CC)	2785 cc
Bore X Stroke	96 x 96.2 mm
Max. Prop Shaft Output kW (PS)	147.1 kW (200 ps) @ 5000 – 6000 rpm
Fuel Induction System	EFI
Engine Transom Height	20.3 in
Dry Weight	221 kg
Starting System	Electric
Ignition System	TCI
Starting Enrichment	Prime Start
Lubrication System	Wet Sump
Digital Network	Optional
Recommended Fuel	Gasoline-Unleaded (Octane 89)
Alternator Output at W.O.T.	50A

4-Stroke Outboard | Mid & Portable Series

YAMAHA FL150FETX

3

of 11

Engine Type	4 Stroke
Displacement (CC)	2650 cc
Bore X Stroke	94.0 x 96.2 mm
Max. Prop Shaft Output kW (PS)	110.3 kW (150 ps) @ 5500 rpm
Fuel Induction System	Fuel Injection
Engine Transom Height	25.3 in
Dry Weight	218 kg
Starting System	Electric
Ignition System	TCI Microcomputer
Starting Enrichment	Prime Start
Lubrication System	Wet Sump
Digital Network	Available
Recommended Fuel	Gasoline-Unleaded (Octane 87)
Alternator Output at W.O.T.	50A

4-Stroke Outboard | Mid & Portable Series

YAMAHA F150FETX

4

of 11

Engine Type	4 Stroke
Displacement (CC)	2670 cc
Bore X Stroke	96.0 x 96.2 mm
Max. Prop Shaft Output kW (PS)	110.3 kW (150 ps) @ 5500 rpm
Fuel Induction System	EFI
Engine Transom Height	20.5 in
Dry Weight	217 kg
Starting System	Electric
Ignition System	TCI Microcomputer
Starting Enrichment	Prime Start
Lubrication System	Wet Sump
Digital Network	Available
Recommended Fuel	Gasoline-Unleaded (Octane 89)
Alternator Output at W.O.T.	50 A

4-Stroke Outboard | Mid & Portable Series

YAMAHA FL115BETX

5

of 11

Engine Type	4 Stroke
Displacement (CC)	1832 cc
Bore X Stroke	81.0 x 88.9 mm
Max. Prop Shaft Output kW (PS)	84.6 kW (115 ps) @ 5800 rpm
Fuel Induction System	Fuel Injection
Engine Transom Height	20.3 in
Dry Weight	171-175 kg
Starting System	Electric
Ignition System	TCI Microcomputer
Starting Enrichment
Lubrication System	Wet Sump
Digital Network	Available
Recommended Fuel	Gasoline-Unleaded (Octane 87)
Alternator Output at W.O.T.	35A

4-Stroke Outboard | Mid & Portable Series

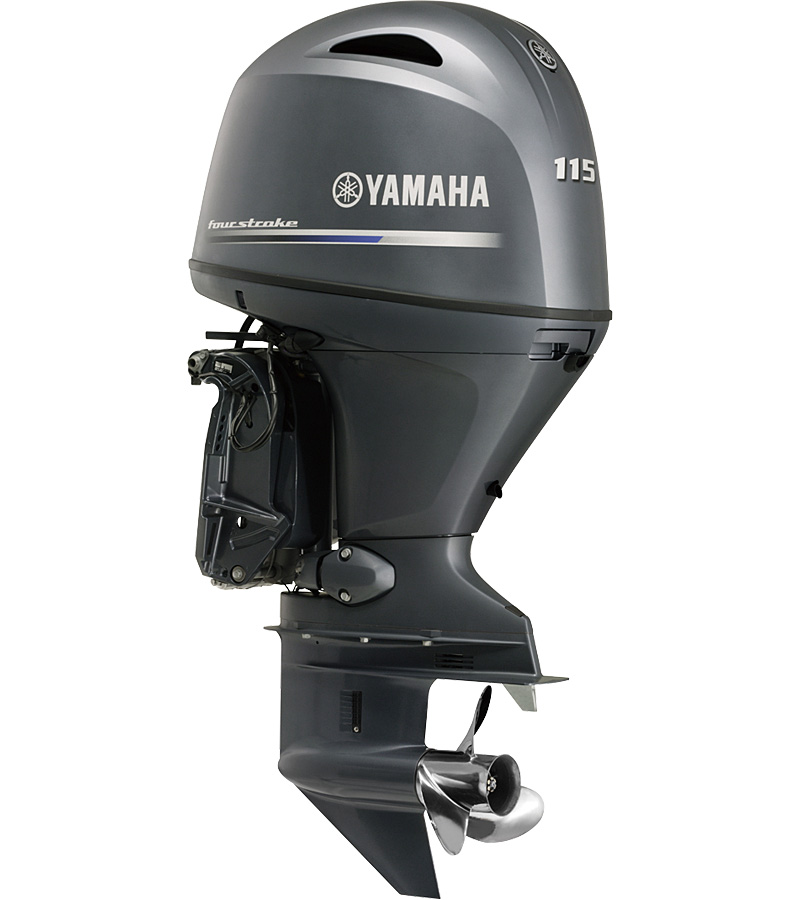

YAMAHA F115BETX

6

of 11

Engine Type	4 Stroke
Displacement (CC)	2670 cc
Bore X Stroke	96.0 x 96.2 mm
Max. Prop Shaft Output kW (PS)	110.3 kW (115 ps) @ 5500 rpm
Fuel Induction System	EFI
Engine Transom Height	20.5 in
Dry Weight	217 kg
Starting System	Electric
Ignition System	TCI Microcomputer
Starting Enrichment
Lubrication System	Wet Sump
Digital Network	Available
Recommended Fuel	Gasoline-Unleaded (Octane 87)
Alternator Output at W.O.T.	50 A

4-Stroke Outboard | Mid & Portable Series

YAMAHA F115BETL

7

of 11

Engine Type	4 Stroke
Displacement (CC)	1832 cc
Bore X Stroke	81.0 x 88.9 mm
Max. Prop Shaft Output kW (PS)	84.6 kW (115 ps) @ 5800 rpm
Fuel Induction System	Fuel Injection
Engine Transom Height	20.3 in
Dry Weight	171-175 kg
Starting System	Electric
Ignition System	TCI Microcomputer
Starting Enrichment
Lubrication System	Wet Sump
Digital Network	Available
Recommended Fuel	Gasoline-Unleaded (Octane 87)
Alternator Output at W.O.T.	35A

4-Stroke Outboard | Mid & Portable Series

YAMAHA F100GETL

8

of 11

Engine Type	4 Stroke
Displacement (CC)	1596 cc
Bore X Stroke	79.0 x 81.4 mm
Max. Prop Shaft Output kW (PS)	73.6 kW (100 ps) @ 5500 rpm
Fuel Induction System	Fuel Injection
Engine Transom Height	21.1 in
Dry Weight	170-173 kg
Starting System	Electric
Ignition System	TCI Microcomputer
Starting Enrichment
Lubrication System	Wet Sump
Digital Network	Available
Recommended Fuel	Gasoline-Unleaded (Octane 87)
Alternator Output at W.O.T.	25A

4-Stroke Outboard | Mid & Portable Series

YAMAHA FT60GETL

10

of 11

Engine Type	4 Stroke
Displacement (CC)	996 cc
Bore X Stroke	65.0 mm x 75.0 mm
Max. Prop Shaft Output kW (PS)	29.7 kW (60 ps) @ 5500 rpm
Fuel Induction System	EFI
Engine Transom Height	20.8 in
Dry Weight	125 kg
Starting System	Electric
Ignition System	TCI
Starting Enrichment	Prime Start
Lubrication System	Wet Sump
Digital Network	N/A
Recommended Fuel	Gasoline-Unleaded (Octane 87)
Alternator Output at W.O.T.	12V - 16A with Rectifier Regulator

4-Stroke Outboard | Mid & Portable Series

YAMAHA F40FETL

11

of 11

Engine Type	4 Stroke
Displacement (CC)	747 cc
Bore X Stroke	65.0 x 75.0 mm
Max. Prop Shaft Output kW (PS)	29.4 kW (40 ps) @ 5500-6000 rpm
Fuel Induction System	EFI
Engine Transom Height	21.1 in
Dry Weight	98 kg
Starting System	Electric
Ignition System	DC-CDI
Starting Enrichment	Prime Start
Lubrication System	Wet Sump
Digital Network	N/A
Recommended Fuel	Gasoline-Unleaded (Octane 87)
Alternator Output at W.O.T.	16A

4-stroke outboards

Commercial Series

300 - 75 PS

4-Stroke Outboard | Commercial

YAMAHA F25GMHS

1

of 6

Engine Type	4 Stroke
Displacement (CC)	432 cc
Bore X Stroke	65.0 x 65.1 mm
Max. Prop Shaft Output kW (PS)	18.4 kW (25 ps) @ 6000 rpm
Fuel Induction System	EFI
Engine Transom Height	15 in
Dry Weight	71 kg
Starting System	Manual
Ignition System
Starting Enrichment
Lubrication System	Wet Sump
Digital Network	N/A
Recommended Fuel	Gasoline - Regular Unleaded
Alternator Output at W.O.T.	12V - 16A

4-Stroke Outboard | Commercial

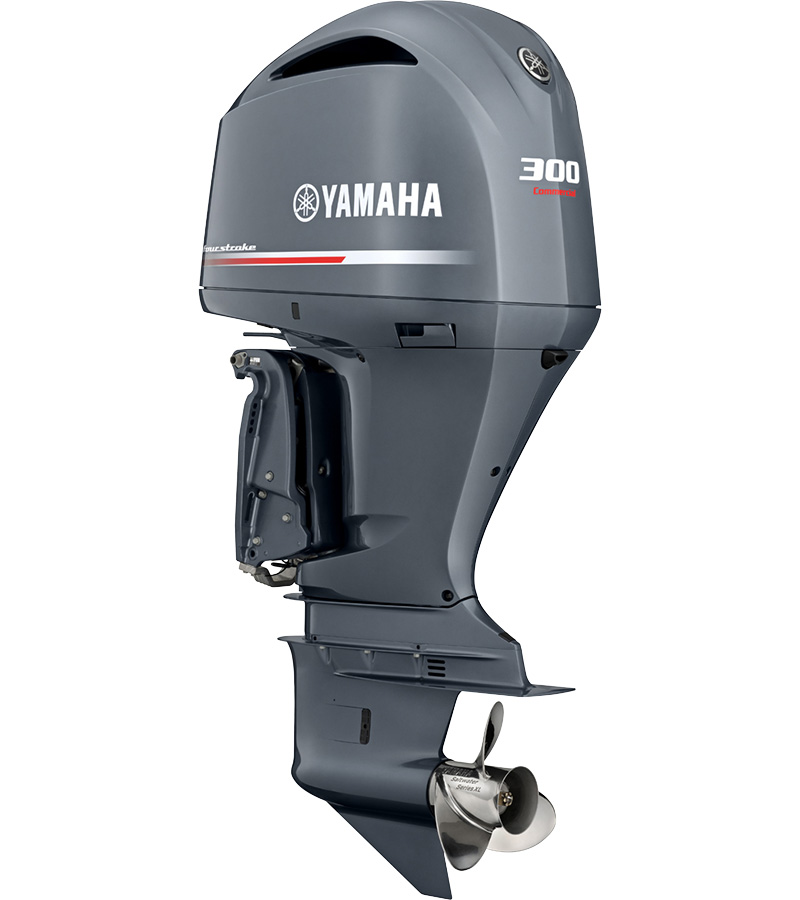

YAMAHA F300DETX

3

of 6

Engine Type	4 Stroke
Displacement (CC)	4,169 cc
Bore X Stroke	96 x 96 mm
Max. Prop Shaft Output kW (PS)	220.6 kW (300 ps) @ 5,500 rpm
Fuel Induction System	EFI (DOHC)
Engine Transom Height	20 in
Dry Weight	253 kg
Starting System	Electric
Ignition System
Starting Enrichment
Lubrication System	Wet Sump
Digital Network	Available
Recommended Fuel	Gasoline-Unleaded (Octane 89)
Alternator Output at W.O.T.	50A

4-Stroke Outboard | Commercial

YAMAHA FL300DETX

4

of 6

Engine Type	4 Stroke
Displacement (CC)	4,169 cc
Bore X Stroke	96 x 96 mm
Max. Prop Shaft Output kW (PS)	220.7 kW (300 ps) @ 5,500 rpm
Fuel Induction System	EFI (DOHC)
Engine Transom Height	25.3 in
Dry Weight	269 kg
Starting System	Electric
Ignition System
Starting Enrichment
Lubrication System	Wet Sump
Digital Network	Available
Recommended Fuel	Gasoline-Unleaded (Octane 89)
Alternator Output at W.O.T.	50A

4-Stroke Outboard | Commercial

YAMAHA F300DETU

5

of 6

Engine Type	4 Stroke
Displacement (CC)	4169 cc
Bore X Stroke	96.0 x 96.0 mm
Max. Prop Shaft Output kW (PS)	220.6 kW (300 ps) @ 5500 rpm
Fuel Induction System	Fuel Injection
Engine Transom Height	25.3 in
Dry Weight	269-276 kg
Starting System	Electric
Ignition System
Starting Enrichment
Lubrication System	Wet Sump
Digital Network	Available
Recommended Fuel	Gasoline-Unleaded (Octane 89)
Alternator Output at W.O.T.	50 A

4-Stroke Outboard | Commercial

YAMAHA FL300DETU

6

of 6

Engine Type	4 Stroke
Displacement (CC)	4169 cc
Bore X Stroke	96.0 x 96.0 mm
Max. Prop Shaft Output kW (PS)	220.6 kW (300 ps) @ 5500 rpm
Fuel Induction System	Fuel Injection
Engine Transom Height	25.3 in
Dry Weight	269-276 kg
Starting System	Electric
Ignition System
Starting Enrichment
Lubrication System	Wet Sump
Digital Network	Available
Recommended Fuel	Gasoline-Unleaded (Octane 89)
Alternator Output at W.O.T.	50 A
